Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5390

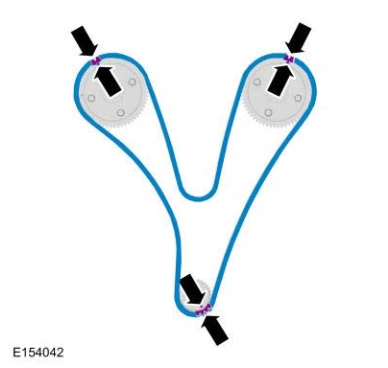

Engine — original illustration 1, reference 5390Original colors & callouts · Select to enlarge

83. Install the lower LH timing chain guide and the bolts.

Torque

: 89 lb.in (10 Nm)

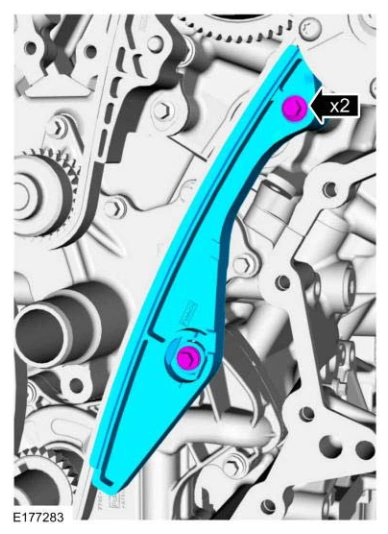

Engine — original illustration 2, reference 5390Original colors & callouts · Select to enlarge

84. Install the timing chain tensioner arm.

Ford_Mustang_all_2015-2017.pdf · source reference 5390
