the timing chain to install the tensioner.

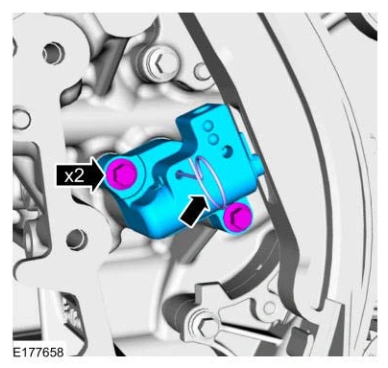

86. Install the timing chain tensioner and the bolts.

Torque

: 89 lb.in (10 Nm)

Remove the lockpin.

Engine — original illustration 1, reference 5392Original colors & callouts · Select to enlarge

87. As a post-check, verify correct alignment of all timing marks.

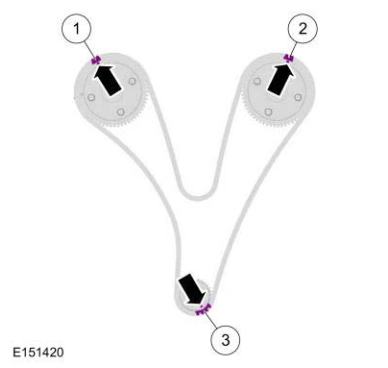

There are 48 links in between the RH intake VCT unit colored link (1) and the LH intake VCT unit colored link (2).

There are 35 links in between LH intake VCT unit colored link (2) and the 2 crankshaft sprocket links (3).

Engine — original illustration 2, reference 5392Original colors & callouts · Select to enlarge
