Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5395

Engine — original illustration 1, reference 5395Original colors & callouts · Select to enlarge

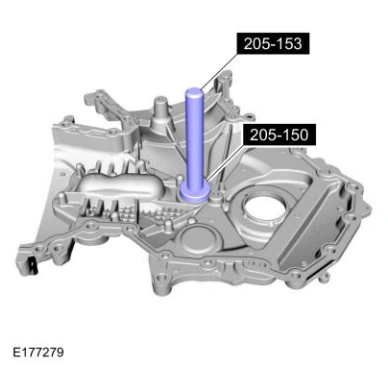

93. Using the special tools, install the front cover to coolant pipe seal.

Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T- 4000-W) Handle.

Engine — original illustration 2, reference 5395Original colors & callouts · Select to enlarge

94. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
