Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5397

Engine — original illustration 1, reference 5397Original colors & callouts · Select to enlarge

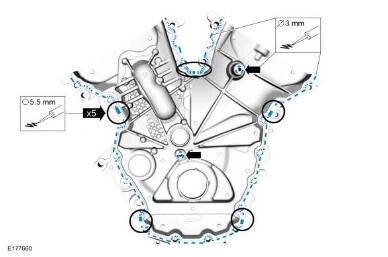

NOTE: Make sure the locating dowel pins are seated correctly in the cylinder block.

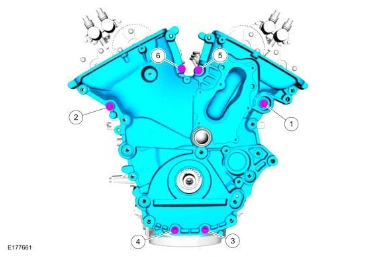

96. Install the engine front cover and the bolts.

Torque

: 27 lb.in (3 Nm)

Engine — original illustration 2, reference 5397Original colors & callouts · Select to enlarge

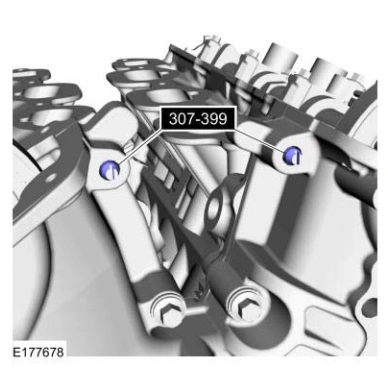

97. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.

Engine — original illustration 3, reference 5397Original colors & callouts · Select to enlarge

98.
