Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5399

Stage 2: 45°

Engine — original illustration 1, reference 5399Original colors & callouts · Select to enlarge

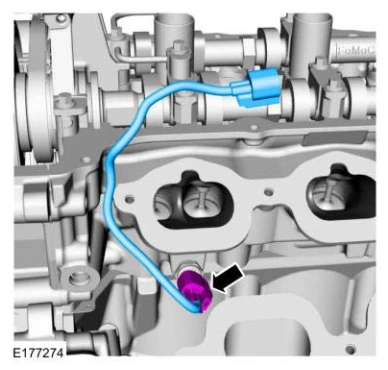

101. Connect the CHT sensor electrical connector.

Engine — original illustration 2, reference 5399Original colors & callouts · Select to enlarge

102. Install the new lower intake manifold gaskets.
