Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5401

Engine — original illustration 1, reference 5401Original colors & callouts · Select to enlarge

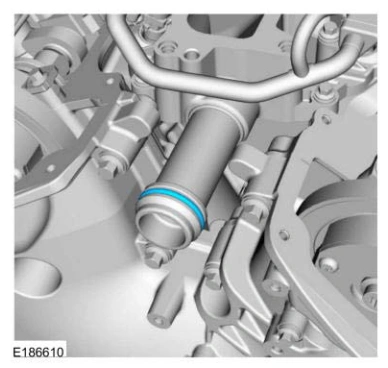

104. Install a new thermostat housing O-ring seal.

Engine — original illustration 2, reference 5401Original colors & callouts · Select to enlarge

105. Install the thermostat housing and the bolts.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°

Ford_Mustang_all_2015-2017.pdf · source reference 5401
