Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5403

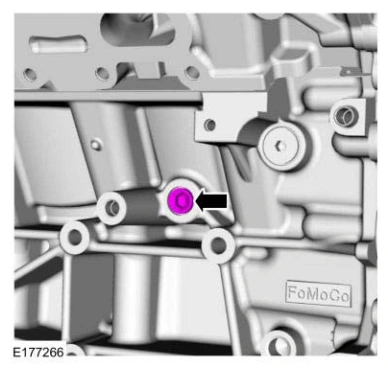

Engine — original illustration 1, reference 5403Original colors & callouts · Select to enlarge

108. Install the LH block coolant drain plug.

Torque

: 30 lb.ft (40 Nm)

Engine — original illustration 2, reference 5403Original colors & callouts · Select to enlarge

109. Install the exhaust manifold studs.

Torque

: 106 lb.in (12 Nm)

Install the exhaust manifold gasket.
