Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5405

Install the exhaust manifold studs.

Torque

: 106 lb.in (12 Nm)

Install the exhaust manifold gasket.

Engine — original illustration 1, reference 5405Original colors & callouts · Select to enlarge

113. Install the exhaust manifold and the new nuts.

Torque:

Stage 1: 168 lb.in (19 Nm)

Engine — original illustration 2, reference 5405Original colors & callouts · Select to enlarge

114. Install the exhaust manifold heat shield and the bolts.

Torque

: 106 lb.in (12 Nm)

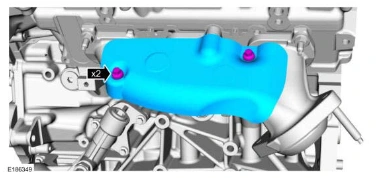

Engine — original illustration 3, reference 5405Original colors & callouts · Select to enlarge

NOTE: Installation of new seals is only required if damaged seals were removed.

115. If removed, using the special tools, install the spark plug tube seals.
