Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,407HTML edition
← Chapter contentsManual collection

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

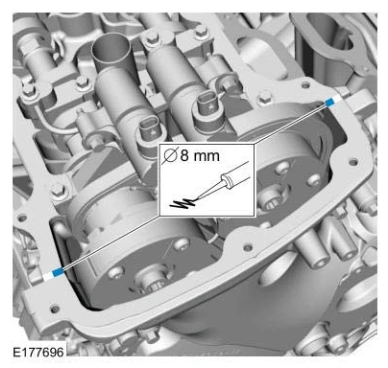

Engine — original illustration 1, reference 5407Original colors & callouts · Select to enlarge

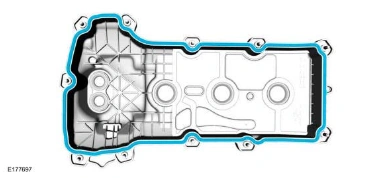

118. Install a new valve cover gasket.

Engine — original illustration 2, reference 5407Original colors & callouts · Select to enlarge

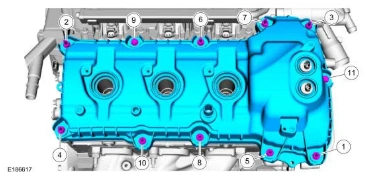

119. Install the valve cover and tighten the bolts.

Torque

: 89 lb.in (10 Nm)

Engine — original illustration 3, reference 5407Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5407
