Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5409

Engine — original illustration 1, reference 5409Original colors & callouts · Select to enlarge

NOTE: Installation of new seals is only required if damaged seals were removed.

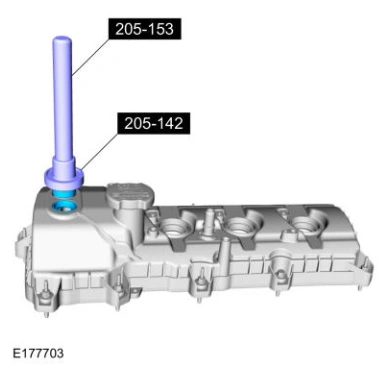

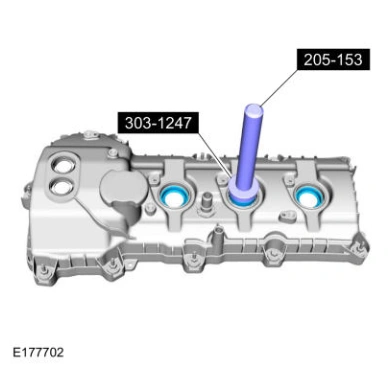

123. If removed, using the special tools, install the VCT oil control solenoid seals.

Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

Engine — original illustration 2, reference 5409Original colors & callouts · Select to enlarge

NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

124. Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

Material

: Motorcraft® Metal Surface Prep / ZC-31-B
