Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5411

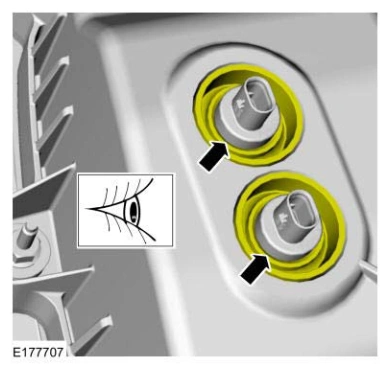

electrical connector or the VCT seal may leak oil.

Engine — original illustration 1, reference 5411Original colors & callouts · Select to enlarge

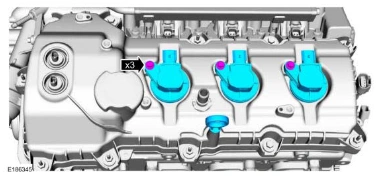

128. Install the LH coil-on-plugs and the bolts.

Torque

: 62 lb.in (7 Nm)

Install the oil level indicator.

Engine — original illustration 2, reference 5411Original colors & callouts · Select to enlarge

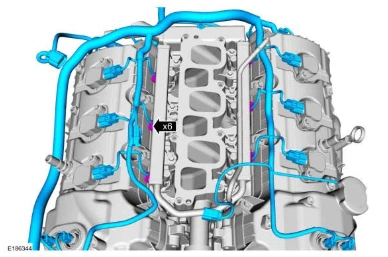

129. Install the engine wiring harness.

Connect the fuel injector electrical connectors.

Engine — original illustration 3, reference 5411Original colors & callouts · Select to enlarge
