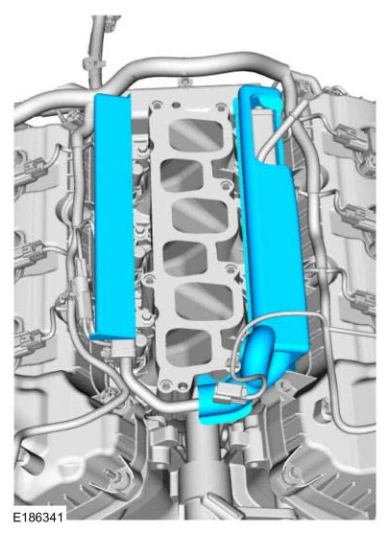

Engine — original illustration 1, reference 5413Original colors & callouts · Select to enlarge

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

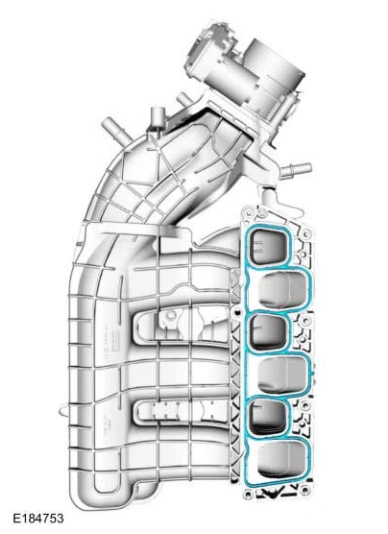

133. Install the new upper intake manifold gasket.

Engine — original illustration 2, reference 5413Original colors & callouts · Select to enlarge

134.
