Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,415HTML edition
← Chapter contentsManual collection

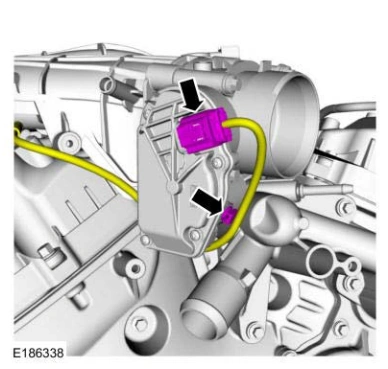

Engine — original illustration 1, reference 5415Original colors & callouts · Select to enlarge

137. Connect the EVAP canister purge valve electrical connector and the wiring harness retainer.

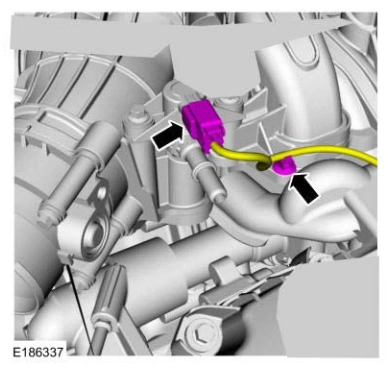

Engine — original illustration 2, reference 5415Original colors & callouts · Select to enlarge

138. Attach the wiring harness retainers.

Connect the oil pressure switch electrical connector.

Connect the ignition coil-on-plug electrical connectors.

Disconnect the VCT oil control solenoids electrical connectors.
