Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,418HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5418Original colors & callouts · Select to enlarge

144. Install the heat shield, nut and bolt.

Torque

: 89 lb.in (10 Nm)

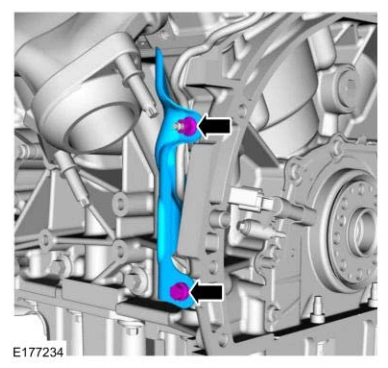

Engine — original illustration 2, reference 5418Original colors & callouts · Select to enlarge

145. Install the upper intake manifold support bracket and the bolt.

Torque

: 89 lb.in (10 Nm)
