Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5420

Engine — original illustration 1, reference 5420Original colors & callouts · Select to enlarge

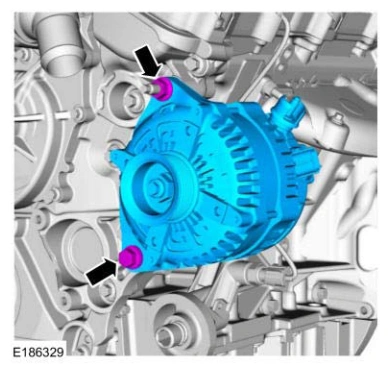

148. Install the generator, nut and bolt.

Torque

: 35 lb.ft (47 Nm)

Engine — original illustration 2, reference 5420Original colors & callouts · Select to enlarge

149.

1. Install the coolant pump pulley and the bolts.

Torque

: 18 lb.ft (24 Nm)

2. Install the accessory drive belt tensioner and the bolts.

Torque

Ford_Mustang_all_2015-2017.pdf · source reference 5420
