Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5422

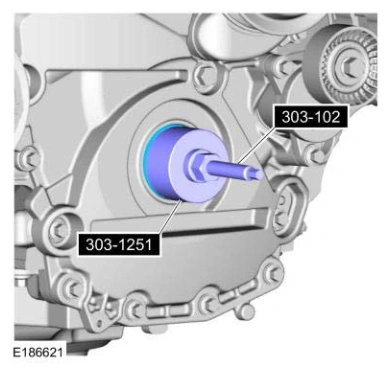

Engine — original illustration 1, reference 5422Original colors & callouts · Select to enlarge

152. Lubricate the crankshaft front seal and the crankshaft pulley with clean engine oil.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine — original illustration 2, reference 5422Original colors & callouts · Select to enlarge

153. Using the special tools, install the crankshaft pulley.

Use Special Service Tool: 303-102 Installer, Crankshaft Pulley, 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal.

Ford_Mustang_all_2015-2017.pdf · source reference 5422
