Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,425HTML edition
← Chapter contentsManual collection

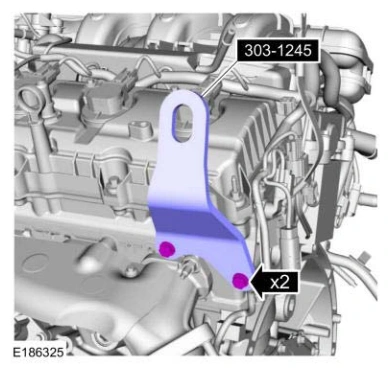

Install Special Service Tool: 303-1245 Engine Lift Eye.

Engine — original illustration 1, reference 5425Original colors & callouts · Select to enlarge

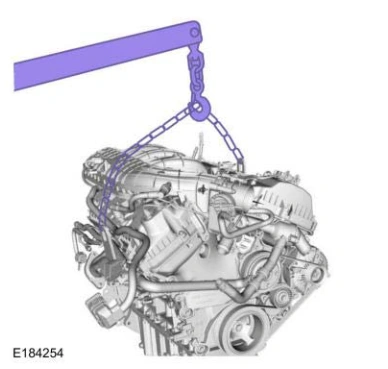

159. Install the floor crane.

Use the General Equipment: Floor Crane

Engine — original illustration 2, reference 5425Original colors & callouts · Select to enlarge

160. Install a ratchet strap from the front of engine to the chain to keep the engine level.

Use the General Equipment: Floor Crane
