Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5427

Engine — original illustration 1, reference 5427Original colors & callouts · Select to enlarge

6-Speed Manual Transmission - MT82

NOTE: The dual mass flywheel has 7 degrees (3.25 ring gear teeth) of freeplay in the clockwise and counter clockwise direction, this is normal between the primary part of the flywheel (bolts-to-crankshaft) and the secondary part of the flywheel (clutch- to-ring gear).

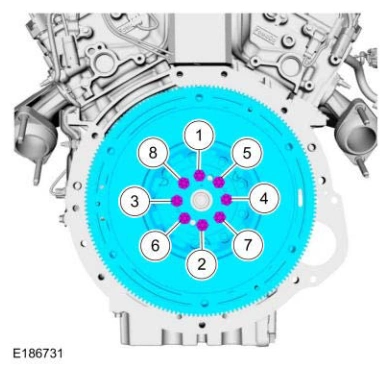

163. Install the flywheel and the bolts.

Torque

: 59 lb.ft (80 Nm)

Engine — original illustration 2, reference 5427Original colors & callouts · Select to enlarge

164. Using the Clutch Alignment tool, position the clutch disc on the flywheel.

Use the General Equipment: Clutch Alignment Tool
