Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,426HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5426Original colors & callouts · Select to enlarge

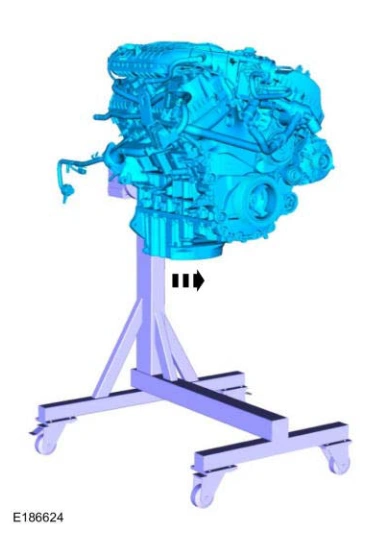

161. Remove the engine from the mounting stand.

Use the General Equipment: Mounting Stand

Engine — original illustration 2, reference 5426Original colors & callouts · Select to enlarge

162. Install the crankshaft sensor ring and the engine-to-transmission spacer plate.

Ford_Mustang_all_2015-2017.pdf · source reference 5426
