Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,428HTML edition
← Chapter contentsManual collection

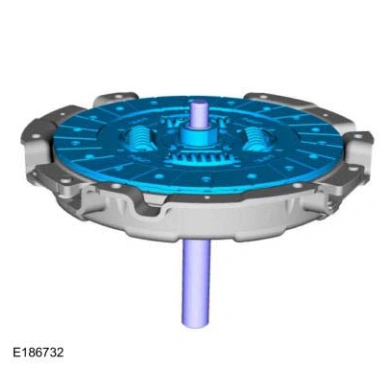

Engine — original illustration 1, reference 5428Original colors & callouts · Select to enlarge

NOTE: If installing the original pressure plate, align it using the index-marks made during removal or a clutch system vibration can occur.

NOTE: Special bolts are used for installation. Do not use standard bolts. Always install new pressure plate bolts.

165. Align the clutch pressure plate on the flywheel and install the clutch pressure plate bolts.

Use the General Equipment: Clutch Alignment Tool

Torque

Stage 1: 46 lb.ft (63 Nm)

Stage 2: 60°

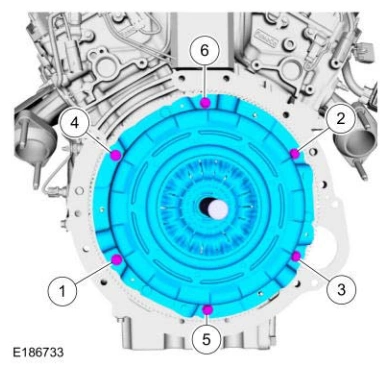

Engine — original illustration 2, reference 5428Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80
