Materials
Name | Specification |
Motorcraft® Multi-Purpose Grease Spray XL-5-A | ESB-M1C93-B |
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) XO-5W20-QSP (U.S.) | WSS-M2C945-A |
6-Speed Automatic Transmission - 6R80

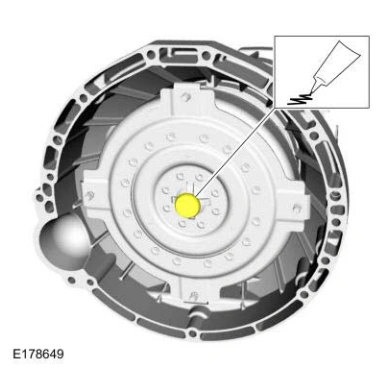

1. Lubricate the torque converter pilot hub with multi-purpose grease.
Material
: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)
2. Inspect the torque converter stud and flexplate for paint marks.
Align the torque converter stud and flexplate hole near the paint marks to the 12 o'clock position.
