Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5433

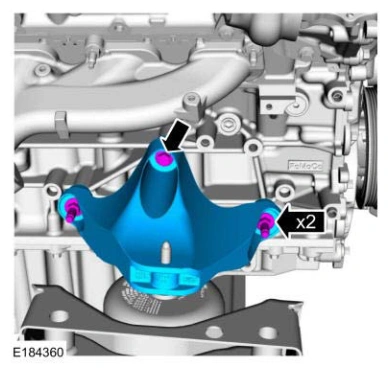

Install the RH engine mount bracket and the bolts.

Torque

: 41 lb.ft (55 Nm)

Engine — original illustration 1, reference 5433Original colors & callouts · Select to enlarge

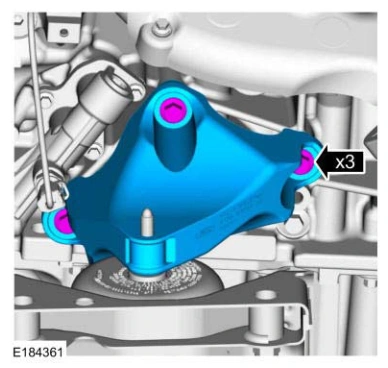

7. Install the LH engine mount bracket and the bolts.

Torque

: 41 lb.ft (55 Nm)

Engine — original illustration 2, reference 5433Original colors & callouts · Select to enlarge

8. Remove the ratchet strap.

Ford_Mustang_all_2015-2017.pdf · source reference 5433
