Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,434HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5434Original colors & callouts · Select to enlarge

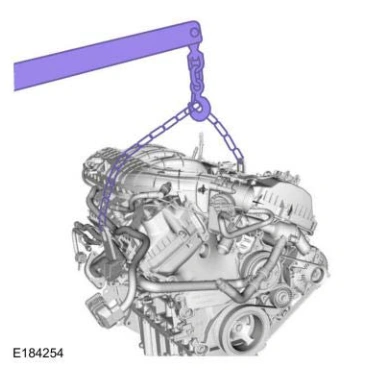

9. Remove the floor crane.

Use the General Equipment: Floor Crane

Engine — original illustration 2, reference 5434Original colors & callouts · Select to enlarge

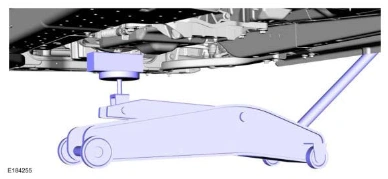

10. Remove the jack and wooden block.

Use the General Equipment: Wooden Block

Use the General Equipment: Trolley Jack

Engine — original illustration 3, reference 5434Original colors & callouts · Select to enlarge
