Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5436

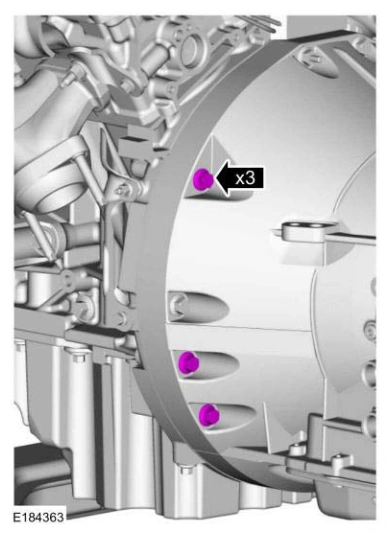

Engine — original illustration 1, reference 5436Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

13. Install the upper bellhousing bolts.

Torque

: 35 lb.ft (48 Nm)

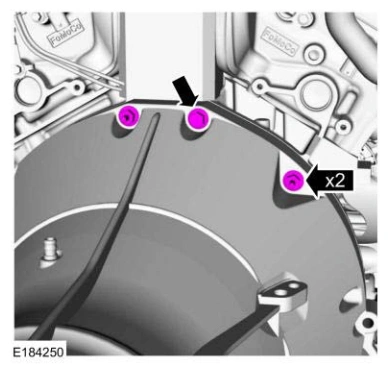

Engine — original illustration 2, reference 5436Original colors & callouts · Select to enlarge

6-Speed Manual Transmission - MT82

14. Position the bracket for the wiring harness on the RH engine mount bracket stud bolt and install the nut.

Ford_Mustang_all_2015-2017.pdf · source reference 5436
