Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,437HTML edition
← Chapter contentsManual collection

Torque

: 35 lb.ft (48 Nm)

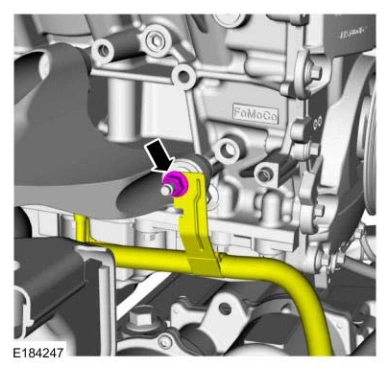

Engine — original illustration 1, reference 5437Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80

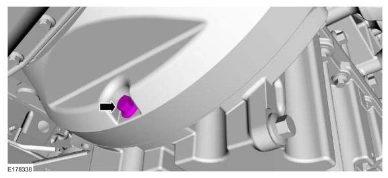

15. Install the lower bellhousing bolt.

Torque

: 35 lb.ft (48 Nm)

Engine — original illustration 2, reference 5437Original colors & callouts · Select to enlarge

16. Position the brackets for the transmission cooling tubes and wiring harness on the RH engine mount bracket and install the nut.

Torque

: 35 lb.ft (48 Nm)
