Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,435HTML edition
← Chapter contentsManual collection

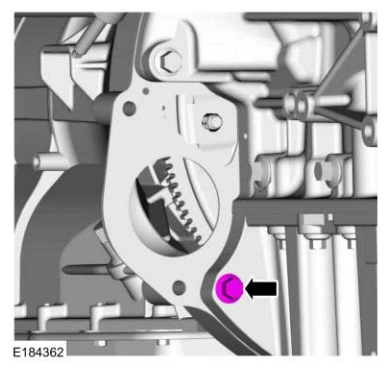

NOTE: Automatic transmission shown in illustration, manual transmission similar.

11. Install the RH side bellhousing bolt.

Torque

: 35 lb.ft (48 Nm)

Engine — original illustration 1, reference 5435Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

12. Install the LH side bellhousing bolts.

Torque

: 35 lb.ft (48 Nm)
