Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,432HTML edition
← Chapter contentsManual collection

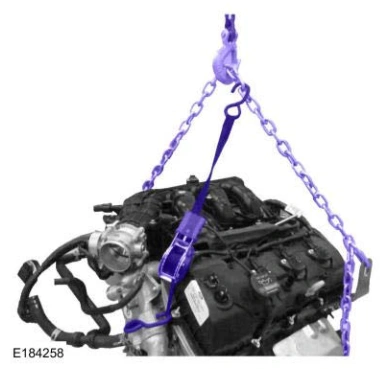

Engine — original illustration 1, reference 5432Original colors & callouts · Select to enlarge

NOTE: When mating engine-to-transmission, make sure RH catalytic converter clears the exhaust manifold studs.

NOTE: Automatic transmission shown in illustration, manual transmission similar.

5. Draw the engine to the transmission together using the bolts.

Torque

: 35 lb.ft (48 Nm)

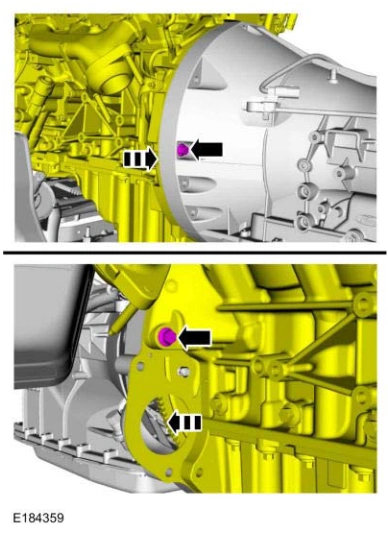

Engine — original illustration 2, reference 5432Original colors & callouts · Select to enlarge

6.

Ford_Mustang_all_2015-2017.pdf · source reference 5432

Original technical text and illustrations, formatted as HTML. Follow the engine, transmission, equipment, model and year specified in the source. Import and layout checks do not establish applicability to every 2015–2017 Mustang. About this collection.
