Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5438

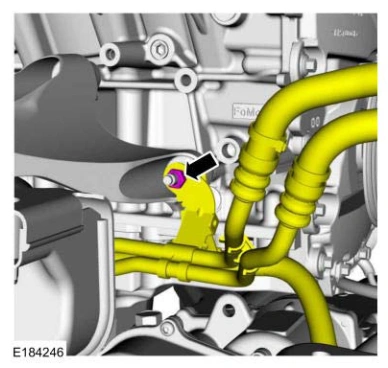

Engine — original illustration 1, reference 5438Original colors & callouts · Select to enlarge

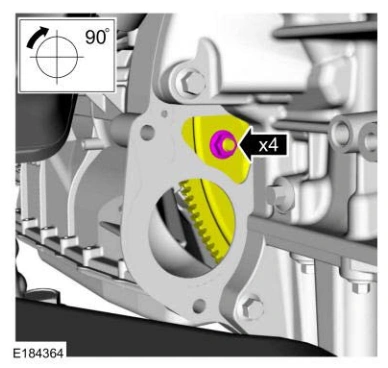

NOTE: Using the crankshaft pulley bolt, turn the engine clockwise.

17. Install new torque converter nuts.

Torque

: 35 lb.ft (48 Nm)

Engine — original illustration 2, reference 5438Original colors & callouts · Select to enlarge

18. Install the access cover and the retainers.

Ford_Mustang_all_2015-2017.pdf · source reference 5438
