Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5440

Engine — original illustration 1, reference 5440Original colors & callouts · Select to enlarge

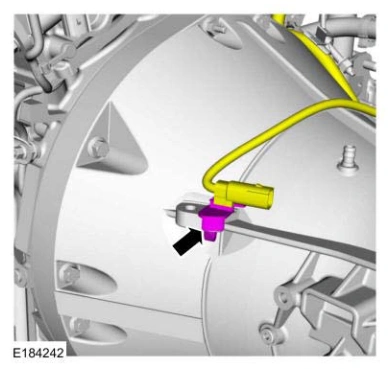

21. Connect the catalyst monitor sensors.

Engine — original illustration 2, reference 5440Original colors & callouts · Select to enlarge

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

22.

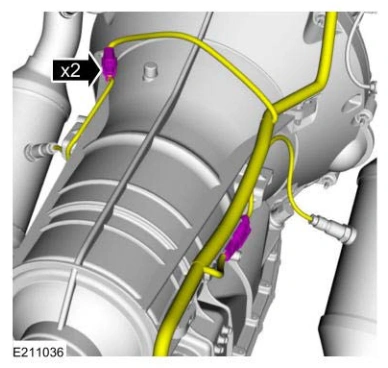

1. Install the new nuts and remove the support.

Torque

: 30 lb.ft (40 Nm)

2. Connect the RH HO2S electrical connector.
