Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5442

Engine — original illustration 1, reference 5442Original colors & callouts · Select to enlarge

25. Install the starter motor. Refer to: STARTER MOTOR .

NOTE: Do not lubricate the engine oil filter gasket.

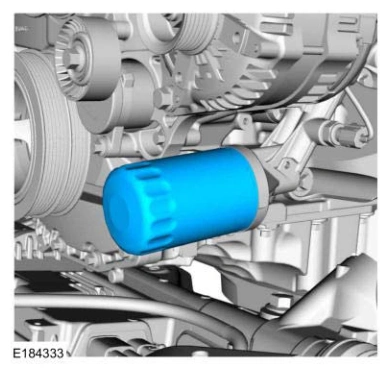

26. Install a new engine oil filter.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 180°

Engine — original illustration 2, reference 5442Original colors & callouts · Select to enlarge

NOTE: Vehicles are equipped with either an underbody shield or a subframe bracket and underbody shield assembly.

27.
