Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5444

Engine — original illustration 1, reference 5444Original colors & callouts · Select to enlarge

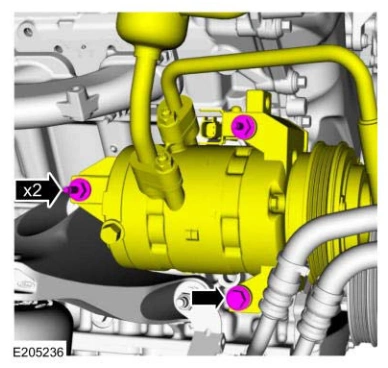

31. Position the A/C compressor and install the stud bolts and bolt.

Torque

: 18 lb.ft (25 Nm)

Engine — original illustration 2, reference 5444Original colors & callouts · Select to enlarge

32. Connect the A/C compressor electrical connector and the wire harness retainer.
