Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5446

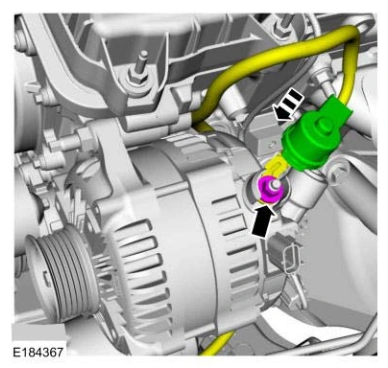

35. Install the generator B+ cable and the nut.

Torque

: 142 lb.in (16 Nm)

Position the protective cover.

Engine — original illustration 1, reference 5446Original colors & callouts · Select to enlarge

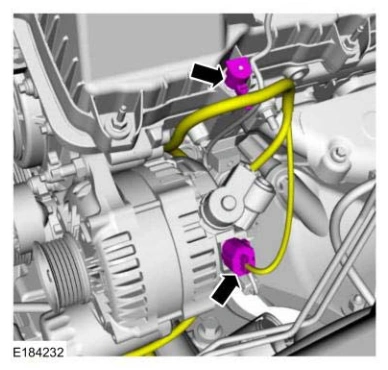

36. Connect the generator electrical connector.

Attach the wire harness retainer to the valve cover stud bolt.

Engine — original illustration 2, reference 5446Original colors & callouts · Select to enlarge

37. Connect the heater hose to the back of the lower intake manifold.
