Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5449

Engine — original illustration 1, reference 5449Original colors & callouts · Select to enlarge

43.

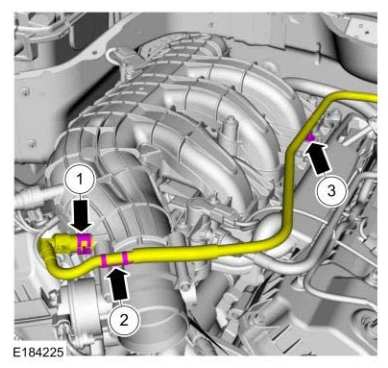

1. Connect the vacuum hose to the upper intake manifold.

Use the General Equipment: Hose Clamp Remover/Installer

2. Attach the vacuum hose retainer to the throttle body.

3. Attach the vacuum hose retainer to the intake manifold.

Engine — original illustration 2, reference 5449Original colors & callouts · Select to enlarge

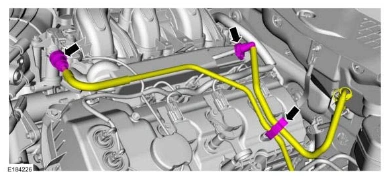

44. Install the crankcase vent tube.
