Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5451

Torque

: 26 lb.ft (35 Nm)

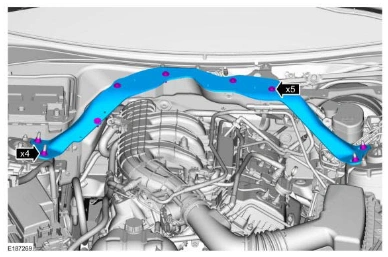

Install the cowl extension nuts.

Torque

: 41 lb.ft (55 Nm)

Engine — original illustration 1, reference 5451Original colors & callouts · Select to enlarge

48. Connect the positive battery cable. Refer to: Battery Disconnect and Connect .

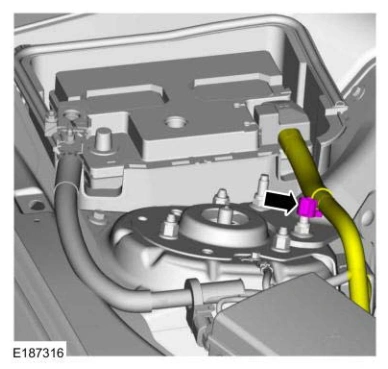

49. Attach the battery cable retainer.

Engine — original illustration 2, reference 5451Original colors & callouts · Select to enlarge

50. Install the cowl panel grille. Refer to: Cowl Panel Grille .

6-Speed Automatic Transmission - 6R80/6-Speed Manual Transmission - MT82

51. Connect the battery ground. Refer to: Battery Disconnect and Connect .

52.
