Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5450

Engine — original illustration 1, reference 5450Original colors & callouts · Select to enlarge

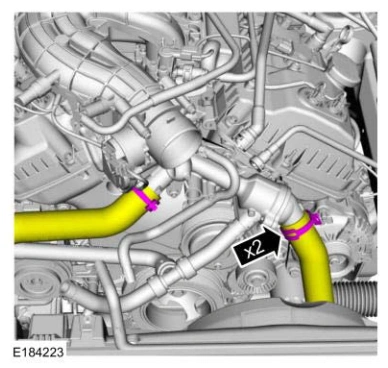

45. Connect the upper and lower radiator hoses to the thermostat housing.

Use the General Equipment: Hose Clamp Remover/Installer

Engine — original illustration 2, reference 5450Original colors & callouts · Select to enlarge

46. Install the following items:

Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

Refer to: AIR CLEANER - 3.7L Duratec (227kW/301PS).

Refer to: AIR CLEANER OUTLET PIPE .

Refer to: DEGAS BOTTLE .

Convertible

47. Install the cowl extension and the bolts.
