Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5448

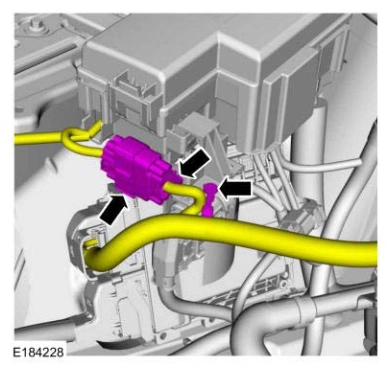

40. Attach the wiring harness retainer.

Connect and attach the engine harness electrical connector.

Engine — original illustration 1, reference 5448Original colors & callouts · Select to enlarge

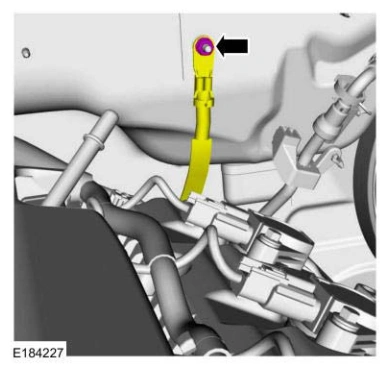

41. Install the ground strap and the nut to the cowl.

Torque

: 80 lb.in (9 Nm)

Engine — original illustration 2, reference 5448Original colors & callouts · Select to enlarge

42. Position and install the retainer to the LH valve cover.

Connect the fuel tube and EVAP purge valve quick release coupling. Refer to: QUICK RELEASE COUPLING .
