Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,445HTML edition
← Chapter contentsManual collection
Engine — original illustration 1, reference 5445Original colors & callouts · Select to enlarge

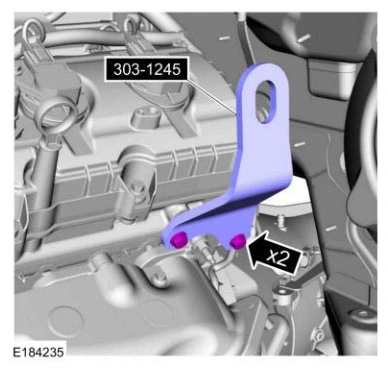

33. Remove Special Service Tool: 303-1245 Engine Lift Eye.

Engine — original illustration 2, reference 5445Original colors & callouts · Select to enlarge

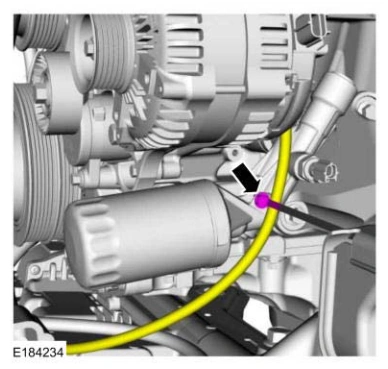

34. Attach the generator wiring harness retainer to the oil filter adapter.

Engine — original illustration 3, reference 5445Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5445
