Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5443

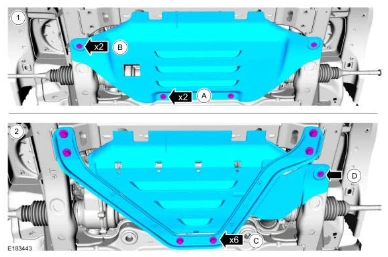

1. Install the underbody shield and the bolts.

Torque:

A: 97 lb.in (11 Nm)

B: 18 lb.in (2 Nm)

2. Install the subframe bracket and underbody shield assembly and the bolts.

Torque:

C: 46 lb.ft (63 Nm)

D: 18 lb.in (2 Nm)

Engine — original illustration 1, reference 5443Original colors & callouts · Select to enlarge

28. Install the front wheels and tires. Refer to: Wheel and Tire .

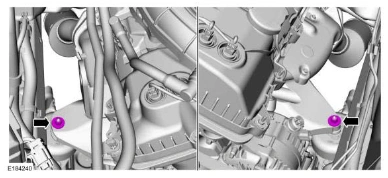

29. Install the RH and LH engine mount bracket nuts.

Torque

: 46 lb.ft (63 Nm)

Engine — original illustration 2, reference 5443Original colors & callouts · Select to enlarge

30. Remove Special Service Tool: 303-1529 Lift Eye, Engine.
