Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5441

Engine — original illustration 1, reference 5441Original colors & callouts · Select to enlarge

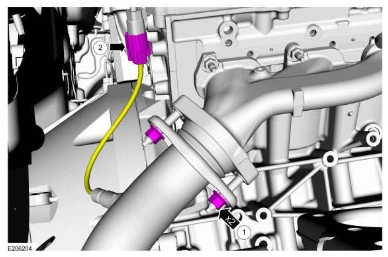

23.

1. Install the new nuts and remove the support.

Torque

: 30 lb.ft (40 Nm)

2. Connect the LH HO2S electrical connector.

Engine — original illustration 2, reference 5441Original colors & callouts · Select to enlarge

NOTE: Automatic transmission shown in illustration, manual transmission similar.

24. Install ground wire to the RH side of the engine and install the bolt.

Torque

: 35 lb.ft (48 Nm)
