Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,447HTML edition
← Chapter contentsManual collection

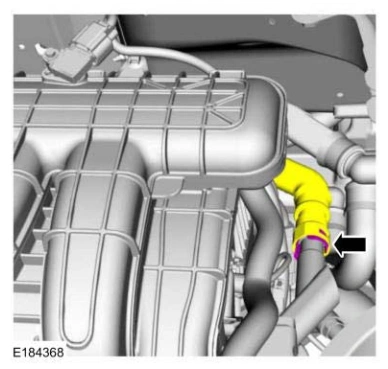

Engine — original illustration 1, reference 5447Original colors & callouts · Select to enlarge

38. Connect the heater hose to the coolant tube.

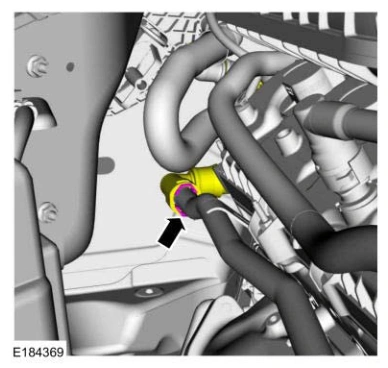

Engine — original illustration 2, reference 5447Original colors & callouts · Select to enlarge

39. Connect the upper PCM electrical connector.

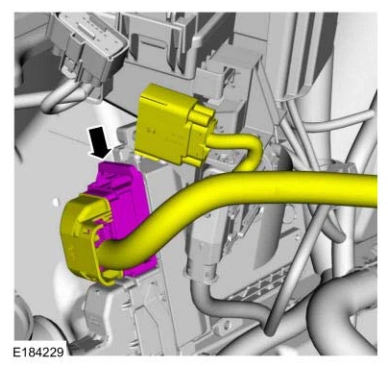

Engine — original illustration 3, reference 5447Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5447
