Engine — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5452

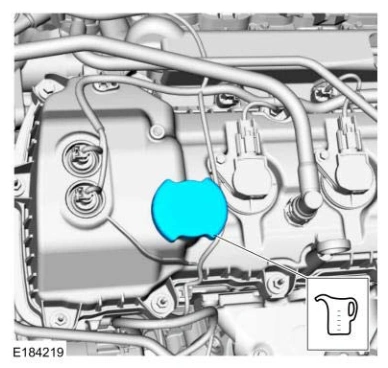

Fill the engine with clean engine oil. Refer to: Specifications .

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine — original illustration 1, reference 5452Original colors & callouts · Select to enlarge

53. Fill the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

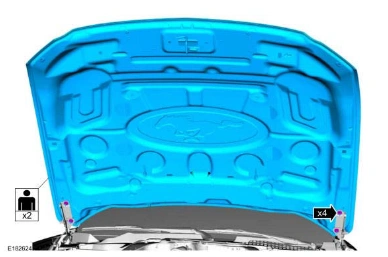

NOTE: Use the index-mark for location to aid in hood installation.

54. Install the hood and the 4 nuts.

Torque

: 17 lb.ft (23 Nm)

Engine — original illustration 2, reference 5452Original colors & callouts · Select to enlarge

55.

1. Connect the windshield washer hose C-Lock Couplers. Refer to: Washer Hose Coupling .
