Engine

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,453HTML edition
← Chapter contentsManual collection

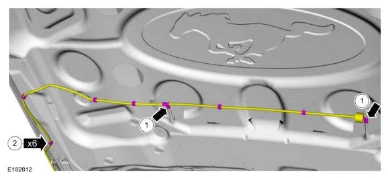

2. Attach the windshield washer hose retainers.

Engine — original illustration 1, reference 5453Original colors & callouts · Select to enlarge

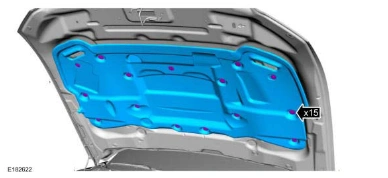

56. Install the hood insulation and the pin-type retainers.

Engine — original illustration 2, reference 5453Original colors & callouts · Select to enlarge

57. Start and check the exhaust system for leaks.

58. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.

Ford_Mustang_all_2015-2017.pdf · source reference 5453
