If the starter motor drive gear and the flywheel or flexplate ring gear are not fully engaging and the starter motor drive gear is scored or damaged, then install a new starter motor.Refer to: Starter Motor .

4. If the teeth on the flywheel or flexplate ring gear are scored or damaged, then install a new flywheel or flexplate. Refer to: FLEXPLATE - 3.7L Duratec (227kW/301PS). Refer to: FLYWHEEL - 3.7L Duratec (227kW/301PS).

REMOVAL AND INSTALLATION > STARTER MOTOR > REMOVAL

WARNING: Always disconnect the battery ground cable at the battery before disconnecting the starter motor battery terminal lead. If a tool is shorted at the starter motor battery terminal, the tool can quickly heat enough to cause a skin burn. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Disconnect the battery. Refer to: Battery Disconnect and Connect .

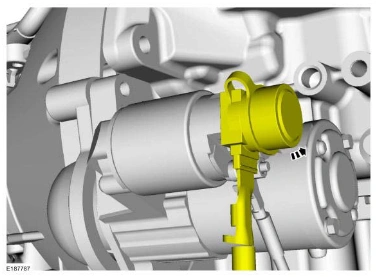

3. Open the starter motor solenoid battery cable cover.

Starter Motor — original illustration 1, reference 6297Original colors & callouts · Select to enlarge
