Starter Motor — Removal — Starting System - 3.7L Duratec (227kW & 301PS) · Reference 6298

Remove the starter motor solenoid battery cable nut and then disconnect the starter motor solenoid battery cable.

Torque

: 106 lb.in (12 Nm)

2. Remove the starter motor solenoid wire nut and then disconnect starter motor solenoid wire.

Torque

: 53 lb.in (6 Nm)

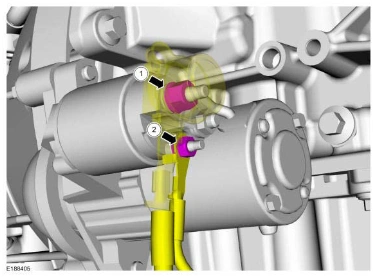

Starter Motor — original illustration 1, reference 6298Original colors & callouts · Select to enlarge

Automatic Transmission

5. Remove the transmission cooling tube mounting bracket nut and then position the transmission cooling tube mounting bracket aside.

Torque

: 119 lb.in (13.5 Nm)

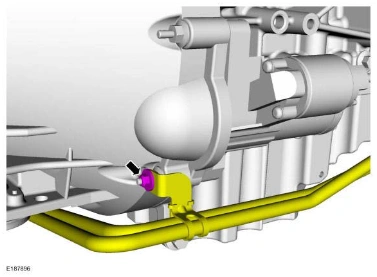

Starter Motor — original illustration 2, reference 6298Original colors & callouts · Select to enlarge

All vehicles

6. Remove the starter motor mounting studbolts and then remove starter motor.

Torque

Ford_Mustang_all_2015-2017.pdf · source reference 6298
