Flexplate — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5097

Flexplate — original illustration 1, reference 5097Original colors & callouts · Select to enlarge

6. Start and check the exhaust system for leaks.

REMOVAL AND INSTALLATION > FLEXPLATE > REMOVAL

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2. Remove the automatic transmission. Refer to: Transmission - 3.7L Duratec (227kW/301PS) .

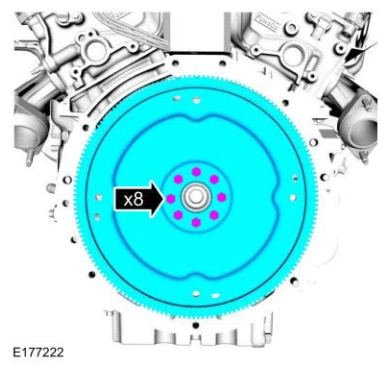

3. Remove the bolts and the flexplate.

Flexplate — original illustration 2, reference 5097Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > FLEXPLATE > INSTALLATION
