Exhaust Manifold RH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5096

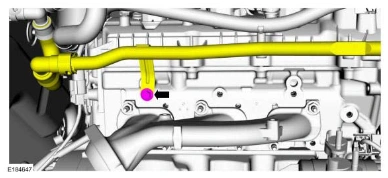

Install the coolant tube bolt.

Torque

: 17 lb.ft (23 Nm)

Exhaust Manifold RH — original illustration 1, reference 5096Original colors & callouts · Select to enlarge

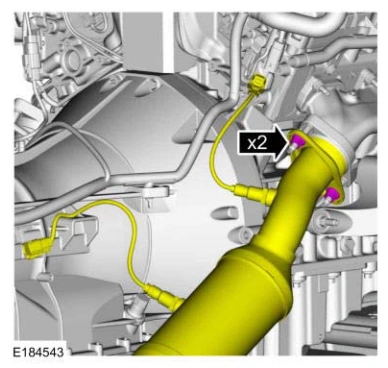

4. Position the RH catalytic converter and install new flange nuts.

Torque

: 30 lb.ft (40 Nm)

Exhaust Manifold RH — original illustration 2, reference 5096Original colors & callouts · Select to enlarge

5. Connect the RH HO2S and catalyst monitor sensor electrical connectors.
