Exhaust Manifold RH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,093HTML edition
← Chapter contentsManual collection
Exhaust Manifold RH — original illustration 1, reference 5093Original colors & callouts · Select to enlarge

6. Install the air cleaner. Refer to: AIR CLEANER - 3.7L Duratec (227kW/301PS).

7. Start and check the exhaust system for leaks.

REMOVAL AND INSTALLATION > EXHAUST MANIFOLD RH > REMOVAL

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

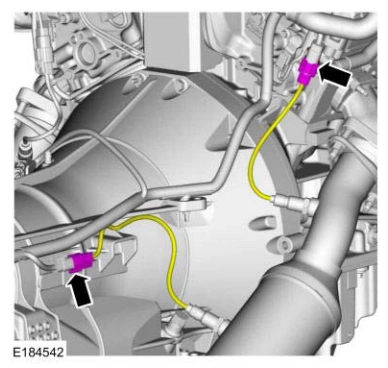

2. Disconnect the RH HO2S and catalyst monitor sensor electrical connectors.

Exhaust Manifold RH — original illustration 2, reference 5093Original colors & callouts · Select to enlarge

NOTE: Clean the catalytic converter-to-exhaust manifold sealing surfaces.
