Exhaust Manifold LH — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,090HTML edition
← Chapter contentsManual collection

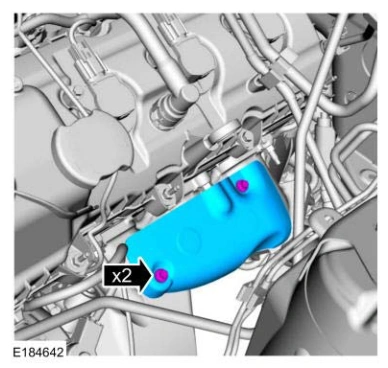

Exhaust Manifold LH — original illustration 1, reference 5090Original colors & callouts · Select to enlarge

6. Remove the nuts and the exhaust manifold.

Discard the nuts.

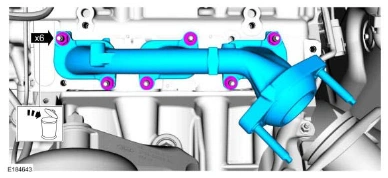

Exhaust Manifold LH — original illustration 2, reference 5090Original colors & callouts · Select to enlarge

7. Remove and discard the exhaust manifold gasket.

Remove and discard the exhaust manifold studs.

Exhaust Manifold LH — original illustration 3, reference 5090Original colors & callouts · Select to enlarge

8. Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

REMOVAL AND INSTALLATION > EXHAUST MANIFOLD LH > INSTALLATION

1.
