Exhaust Manifold LH — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5089

2. Remove the air cleaner. Refer to: AIR CLEANER - 3.7L Duratec (227kW/301PS).

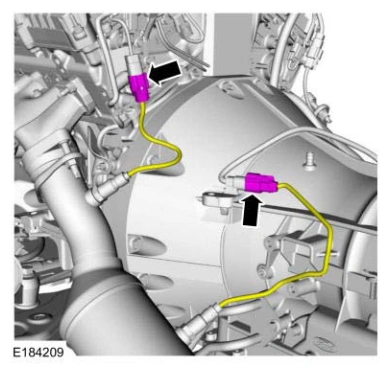

3. Disconnect the LH HO2S and catalyst monitor sensor electrical connectors.

Exhaust Manifold LH — original illustration 1, reference 5089Original colors & callouts · Select to enlarge

NOTE: Clean the catalytic converter-to-exhaust manifold sealing surfaces.

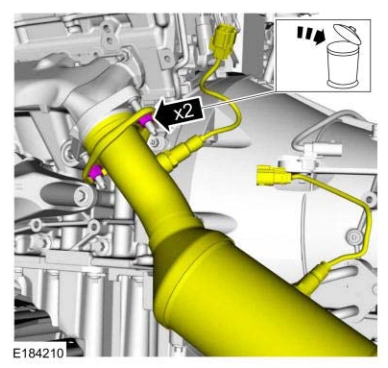

4. Remove and discard the LH catalytic converter flange nuts.

Exhaust Manifold LH — original illustration 2, reference 5089Original colors & callouts · Select to enlarge

5. Remove the bolts and the exhaust manifold heat shield.
