Exhaust Manifold LH — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5088

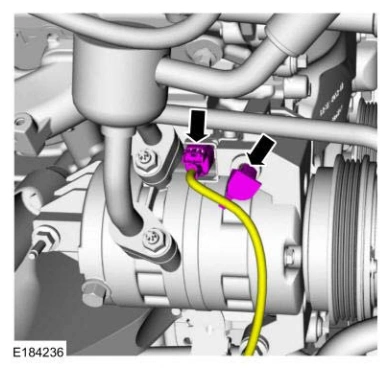

7. Connect the A/C compressor electrical connector and the wire harness retainer.

Exhaust Manifold LH — original illustration 1, reference 5088Original colors & callouts · Select to enlarge

8. Install the A/C compressor belt. Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

9. Install the following items:

Refer to: AIR CLEANER - 3.7L Duratec (227kW/301PS).

Refer to: AIR CLEANER OUTLET PIPE .

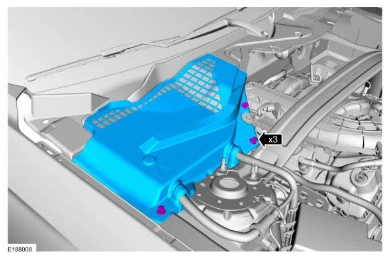

10. Install the battery cover and the retainers.

Exhaust Manifold LH — original illustration 2, reference 5088Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > EXHAUST MANIFOLD LH > REMOVAL

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
